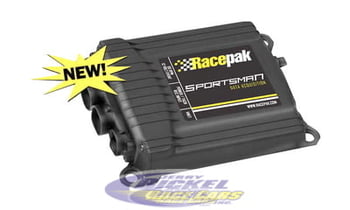

Sportsman Data System 610KTSPRTM

Sportsman Data System 610KTSPRTM

Part#: 610KTSPRTM

Price: $825.00
Pinion Size:
Quantity:


Sportsman Data System 610KTSPRTM

Sportsman Data System 610KTSPRTM Product Description:

INTERNAL SENSORS:
• Engine RPM
• Driveshaft RPM (includes sensor)
• Battery Voltage
• Record Button
• 2-Axis G-Meter
• 12 Volt Event

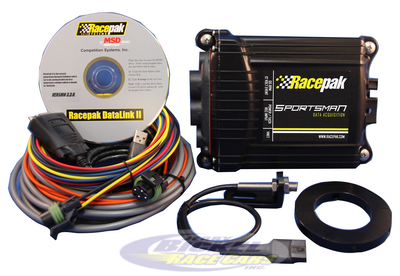

KIT INCLUDES:
• Sportsman Data Loger
• User-terminated harness
• Driveshaft collar, sensor and
  mount bracket
• SD card reader
• Datalink II software disc
• USB to Serial adapter
• Serial cable
SPECIFICATIONS:
• Lightweight composite housing
• SD memory card
• 21 Channels (6 user defined)
• 100 sps (max sample rate)
• Dimensions - 6” x 4.5” x 1”
• Weight - 0.65 lbs.

 Specify your Pinion Yoke for Driveshaft Pick-up Ring



FREE UPS GROUND SHIPPING
