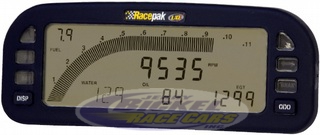

UDX Ultra Dash

UDX Ultra Dash Product Description:

· 4 Screens / 20 Programmable Displays
· Plug-n-Play Installation
· Warning Lights / Function Buttons
· Command Center for A Shift Light
· Minimum / Maximum Read Outs
· Adjustable Lighting for Night Time Use

UDX dashes are capable of displaying up to 21 different functions. There are five numeric displays, plus the engine RPM sweep bar, on each of the four screen ‘pages’. Scrolling from one page to the next is accomplished with the push of a button. The 7.25” x 2.62” LCD screen is backlit for night time operation. Each dash has output for a shift light, and shift point programming is done right on the screen. Warning lights are located on each side of the display screen. You have the ability to assign these high or low threshold alarms to your choice of monitored functions. The buttons at the bottom of the panel are used to scroll through the screen pages as well as to activate various functions. Additional sensors can be added by using the popular individual V-Net sensor and modules

Overall dimensions of the UDX bezel are 4.0” tall and 10.2” wide. It will stand out .750” from the mounting surface. The dash can be mounted against any flat panel which permits a depth of 2.00 inches behind the mounting surface for clearance of the dash and its rear mounted V-Net cable. The dash weighs a mere 1.3 pounds.
