E-Z Lift Jack System (Air)

E-Z Lift Jack System (Air)

Part#: E-Z Lift (Air)

Price: $2,995.00

Front Frame Centers *

Rear Lift Tab Centers *

* required fields

Quantity:

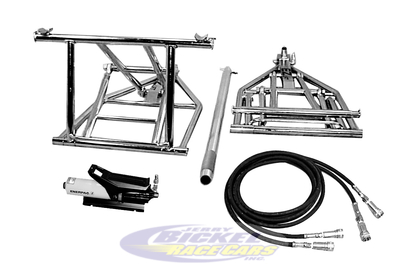

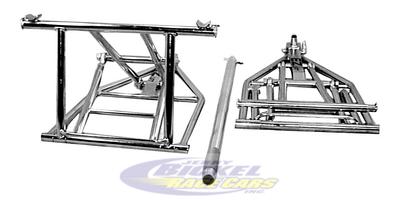

E-Z Lift Jack System (Air) Product Description:

Requiring only 2-1/2” of clearance, our  E-Z Lift jack system will slide under the lowest of chassis.  With the use of this professional jack system, raising and lowering your car becomes a simple task.After the car has been lifted and the safeties are in place, you have a solidly supported work station, much like supporting the car with individual jack stands. We designed the system using a one-way adjustable flow control valve making it possible to lower the car at a desired rate. All materials are 4130 moly tubing with heavy duty 3/4” rod ends. The entire system is chrome plated for durable, long lasting finish and a professional appearance. The system utilizes an air-over-hydraulic pump, heavy duty hoses with quick disconnect couplings on both ends and swivel fittings which help eliminate twisted hoses. Optional electric-over-hydraulic pump is available at an extra charge. System comes complete with installation instructions and rear frame lifting tabs.  Frame rail center to center width is required when ordering. Capacity #2800 lbs., heavy duty systems available call for pricing.
