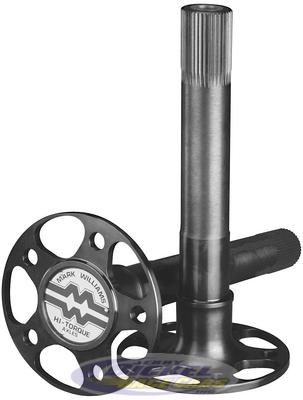

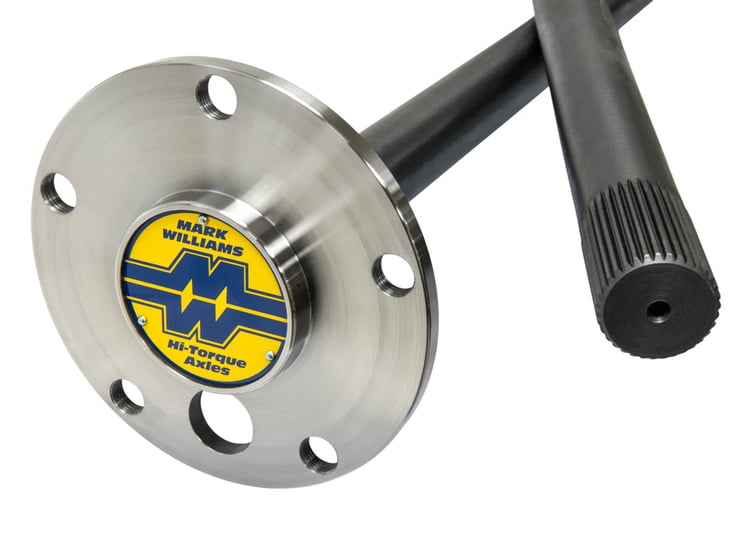

50100 Hi-Torque Axles

A

Mark Williams 4340 forged steel standard 35 spline Hi-Torque Axles are Forged, Machined, and Made in the USA.

Note: These standard 35 spline axles utilize a standard Dana style spline and pressure angle design that utilizes an industry standard spool. We do offer our extra strength Mark Williams spec 35 spline axles as well, see our other listings for this option.

MW Hi-Torque high strength axles are the perfect balance of strength and price. All MW axles are designed to have increased torsional and bending capacity. This is accomplished by offering the largest axle bearing diameter possible for your particular housing end and incorporating a tapered machining from the bearing journal to the spline.

Hi-Torque axles are thru hardened with a unique austemper heat treat process for unparalleled strength, durability, and longevity.

Features

• Utilizes strong 4340 Thru Hardened steel material
• Standard 35 spline spec
• Forged and Machined in the USA
• Custom machined to your application
• Optional Dual stud pattern at no extra charge
• 5x4.5" and 5x4.75" options available (custom upon request)
• 1/2" and 5/8" stud holes optional
• Price is per pair
• Bearings sold separately
