Front End To Chassis Mount Kit JBRC2016

Front End To Chassis Mount Kit JBRC2016

Part#: JBRC2016

Price: $169.00
Quantity:


Front End To Chassis Mount Kit JBRC2016Front End To Chassis Mount Kit JBRC2016Front End To Chassis Mount Kit JBRC2016

Front End To Chassis Mount Kit JBRC2016 Product Description:

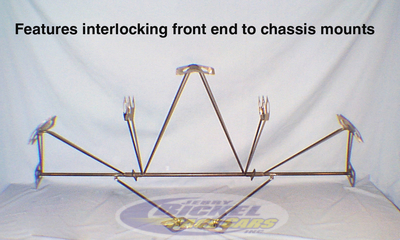

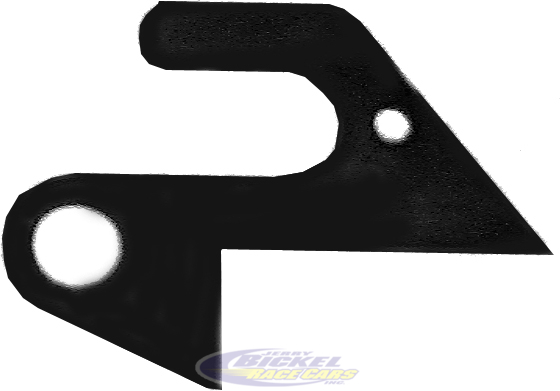

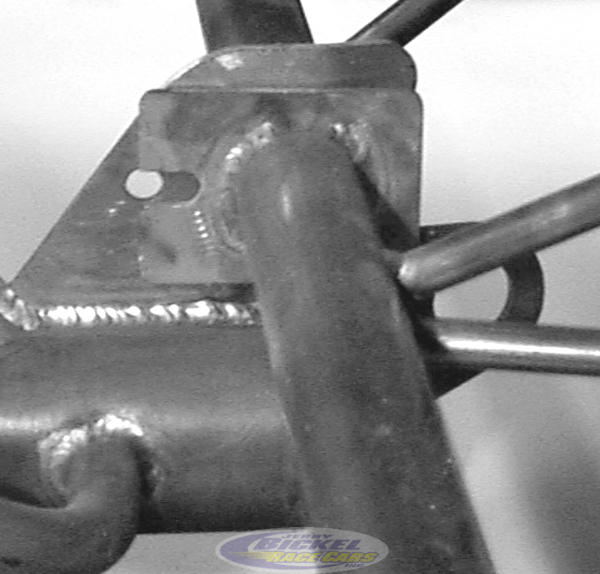

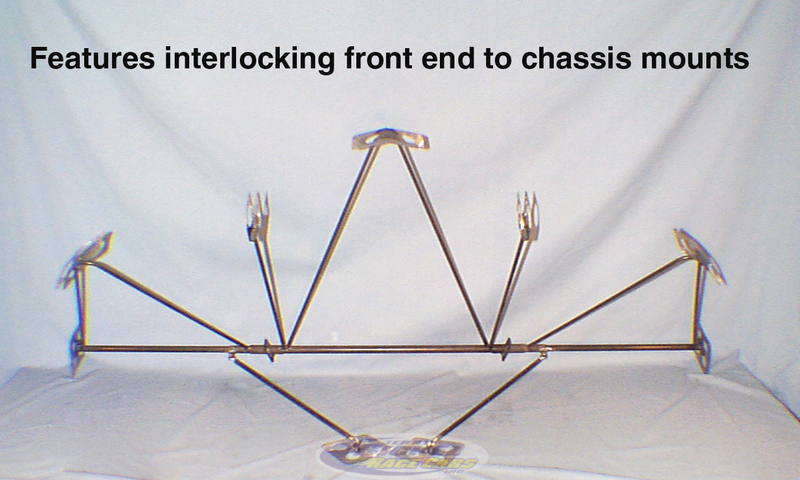

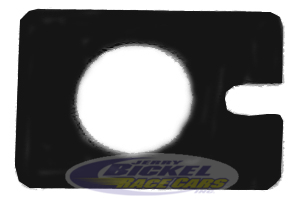

Because of the unique design of the JBRC fiberglass front end mount kit, removal and installation of the front end is quick and easy. The design eliminates any chance of binding due to the slip in receiver grooves and centering brackets welded to the cross tube. Because it's constructed of rugged, yet light-weight 4130 moly tubing, it offers structural support at critical pressure points on the fiberglass front end. Comes complete with two chassis mounting guides, front end centering tabs, all necessary mount tubing and 4130 chrome moly mounting plates. Welding and fiberglassing necessary.  JB-046A Chassis Mount Tab (2) and JB-047 Cross Tube Tab (2) Shown are included.
