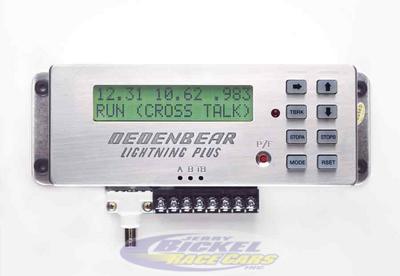

Dedenbear Lighting Plus Delay Box L2

Dedenbear Lighting Plus Delay Box L2

Part#: L2

Price: $476.00
Quantity:

Dedenbear Lighting Plus Delay Box L2 Product Description:



FEATURES INCLUDE:


SMALLEST MULTI-FUNCTION DELAY BOX AVAILABLE

BILLET ALUMINUM ENCLOSURE

MORE OUTPUTS THAN COMPARABLE BOXES UNDER $400

4 DIFFERENT DELAY MODES

  • Exclusive "Cross-Talk"
  • "Crossover"
  • "Interface"
  • "Delay"
This gives you the ability to set the mode to fit your needs.

SKIP UP AND SKIP DOWN
(same as tap up/down)


You can add or subtract from your delay with a push of a separate button after you release your transbrake button. Programmable to the thousandth of a second (.001) with recall built-in to see how many times you skipped.


STARTING LINE CONTROL OUTPUT WITH ADJUSTABLE TIME RELEASE   Allows you to put your foot on the floor at transbrake apply and your throttle stop holds the motor at your staging RPM. You can adjust the time when the motor pulls to wide open before the transbrake releases.

"SUPER START" AUTOMATIC STARTING LINE CONTROL FOR ACTIVATING A THROTTLE STOP PRIOR TO STAGING   Allows you to put your foot on the floor at transbrake apply and your throttle stop holds the motor at your staging RPM. You can adjust the time when the motor pulls to wide open before the transbrake releases.

TWO 4-STAGE TIMERS   Each adjustable to the thousandth of a second (.001). Ideal for Throttle stops, shift by time, nitrous, lean outs and retards.

LIGHTED KEYPAD AND DISPLAY FOR NIGHT USE

EASY TOUCH KEYPAD   Easy to use, even with gloves.

PRO/FULL FEATURE   Allows you to save two groups of settings.

ADJUSTABLE TRANSBRAKE LOCKOUT   Prevents the transbrake from being reapplied down track. Adjustable in 1-second increments.

SCROLL KEYS UP AND DOWN   Makes adjustments quick and easy.

INDEPENDENT LINE LOCK OUTPUT   This can be hooked up to prevent "rocking" when applying the transbrake.

REMOTE DISPLAY DIAL-IN BOARD OUTPUT RD-1
(Patent 6,411,205 B1)



HOW LATE TIMER   When taking multiple hits this will tell you which hit you launched on and by how much.

COMPATIBLE WITH ALL CYLINDER ENGINES

COMBINE STARTING LINE AND THROTTLE STOP CONTROL   Single throttle stop can be used for both functions

TB PAUSE



CROSS-OVER COMPENSATION
(Patent #5,652,468)


COMPATIBLE WITH ALL IGNITIONS, EVEN MAGNETOS

12 & 16 VOLT COMPATIBLE

NHRA ACCEPTED
