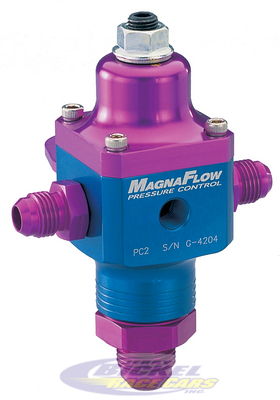

MagnaFuel Large 2-Port Fuel Pressure Regulator

MagnaFuel Large 2-Port Fuel Pressure Regulator

Part#: MP-9833

Price: $240.00
Quantity:

MagnaFuel Large 2-Port Fuel Pressure Regulator Product Description:

Carbureted Regulators
Fast response, low maintenance.

  • MagnaFuel unique cartridge design provides the most stable platform for fuel delivery in the performance industry
  • Durable metal to metal seat for instantaneous response and low maintenance
  • Two and four-port configurations available
  • 1/8” NPT gauge ports on all models
  • Boost-reference models provide a 1:1 compensation ratio
  • Suitable for drag racing, circle track, road racing, mud bog, power boat, tractor pulling
  • Adjustable base pressure
  • Machined from billet aircraft aluminum and anodized for long lasting finish
  • Precise pressure control

Model No. Description Horsepower Pressure Ports²
MP-9433 4-port Regulator 1,600+ 4–12psi 1 x #10 in, 4 x #6 out
MP-9433-B 4-port Boost Reference Regulator 1,600+ 4–12psi 1 x #10 in, 4 x #6 out
MP-9833 Large 2-port regulator 1,600+ 4–12psi 1 x #10 in, 2x #8 out
MP-9833-B Large 2-port Boost Reference Regulator 1,600+ 4–12psi 1 x #10 in, 2x #8 out
MP-9633 2port regulator 750+ 4–12psi 1 x #10 in, 2x #6 out
MP-9690 2-port Boost Reference Regulator 750+ 4–12psi 1 x #10 in, 2 x #6 out

¹ Power ratings are for naturally aspirated engines running gasoline. ²Fittings not included. Some products legal for racing only; never to be used on public roads or emission-controlled vehicles.
