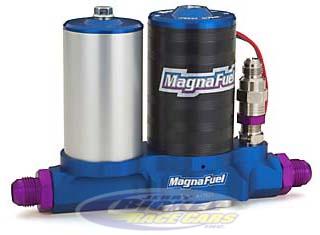

MagnaFuel ProStar 500 Electric Fuel Pump with Filter

MagnaFuel ProStar 500 Electric Fuel Pump with Filter

Part#: MP-4450

Price: $639.00
Quantity:

MagnaFuel ProStar 500 Electric Fuel Pump with Filter Product Description:

ProStar 500
Engine Hp: 2,000+¹ at 28psi.
The classic: high volume at rated pressure.

  • High performance when rated at flow vs. pressure
  • External by-pass to eliminate pump cavitations
  • Instantaneous compensation for sudden changes in fuel demand
  • Consistent, reliable fuel supply for optimum carburetor performance
  • Compatible with both alcohol and gasoline racing fuels
  • Light weight
  • Hand assembled to the highest quality standard
  • Pump bodies computer machined out of high quality 6061 Aluminum
  • Custom built low amperage motors – the best in the industry
  • Compatible with 12- and 16-V electrical systems
  • No metal to metal contact for reduced wear and greater reliability
  • Blades self-compensating for wear
  • Flow tested to ensure maximum performance
  • All MagnaFuel pumps are rebuildable to “as-new” factory specifications
Model No. Horsepower Pressure [email protected] Ports ² Dimensions Weight
MP-4450 2,000 25–36psi 13A@28psi 2 x #12 in and out, #8 bypass 8.25 x 3 x 7" 8 lbs.
MP-4401 2,000 25–36psi 13A@28psi 2 x #12 in and out, #8 bypass 5.75 x 3 x 7" 7 lbs.

¹ Power ratings are for naturally aspirated engines running gasoline. ²Fittings not included. Some products legal for racing only; never to be used on public roads or emission-controlled vehicles.
