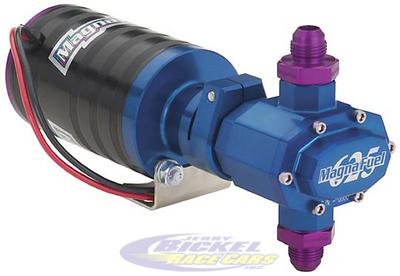

MagnaFuel ProStar EFI 625 Electric Fuel Pump

MagnaFuel ProStar EFI 625 Electric Fuel Pump

Part#: MP-4701

Price: $869.00
Quantity:


MagnaFuel ProStar EFI 625 Electric Fuel Pump

MagnaFuel ProStar EFI 625 Electric Fuel Pump Product Description:

ProStar EFI Series
Engine Hp: 2,500+¹
First electric gear pump on the market.
Swivel adapter allows more mounting options.
  • Swivel pump head allows more mounting freedom
  • First electric motor gear pump to supply 2,500+ HP
  • Provides highest volume at highest pressure... Period
  • Great performance for the high volume and pressure demands of supercharged and turbo-charged applications
  • Never requires voltage reduction devices due to high quality motor construction
  • Powered by the same motor as the race proven MagnaFuel ProStar 500
  • Compatible with alcohol and gasoline racing fuels
  • Hand assembled to the highest quality standards
  • Pump bodies computer machined out of high quality 6061-T6 Billet Aluminum
  • Flow tested to ensure maximum performance
  • All MagnaFuel pumps are totally rebuildable to “As New” factory specifications
  • Polymer wear plates for smooth, quiet operation



Model No. Horsepower¹ Pressure [email protected] Ports² Dimensions Weight
MP-4703 2,500+ 20–120psi 17A@45psi #10AN in and out 9.5 x 3 x 3" 6.5 lbs.
MP-4701 2,000+ 20–120psi 15A@45psi #10AN in and out 9.5 x 3 x 3" 6.5 lbs.
MP-4702 1,500+ 20–120psi 12A@45psi #10AN in and out 9.5 x 3 x 3" 6.5 lbs.

¹ Power ratings are for naturally aspirated engines running gasoline. ²Fittings not included. Some products legal for racing only; never to be used on public roads or emission-controlled vehicles.
